Our self-aligning welding rotator is developed by incorporating the advantages of similar products both domestically and internationally, while considering the usage requirements of several boiler and pressure vessel manufacturing plants. It is widely used for welding metal cylinders and is a specialized equipment required for the manufacturing of boilers, pressure vessels, and more. The self-aligning welding rotator features advanced technology, reliable quality, and easy operation.

Performance features

The standard self-aligning welding rotator consists of an active frame and a passive frame, and can also be customized with one active frame and multiple passive frames, providing ease of use and strong adaptability.
The roller group's inclination angle can be automatically adjusted according to the diameter of the workpiece, eliminating the need for manual adjustment.
All four wheels of the active frame adopt gear meshing transmission, enabling four-wheel drive.
The polyurethane-coated wheels have high friction, long lifespan, and strong load-bearing capacity.
The adoption of AC frequency converter allows for stepless speed control, providing high starting torque, a wide speed range, stable operation, and multiple protection functions such as overvoltage, overcurrent, overload, and overheating.
The start, stop, forward, reverse, and speed adjustment of the active roller frame are operated on the remote control box.
There is an interface for linkage control, enabling integration with operating machines for welding center formation.

Parameter

Specification	load capacity（T）	center distance（mm）	Roller Diameter（mm）	Roller width（mm）	Workpiece Diameter（mm）
ZT-5T	5	1030	250	120	300-2500
ZT-10T	10	1070	300	150	300-3000
ZT-20T	20	1180	300	170	400-3500
ZT-30T	30	1270	300	200	450-3800
ZT-40T	40	1600	350	200	600-4500
ZT-50T	50	1700	400	200	750-5000
ZT-60T	60	1850	425	220	750-5500
ZT-80T	80	1950	425	220	900-5800
ZT-100T	100	2200	425	220	1000-6000

Related Products

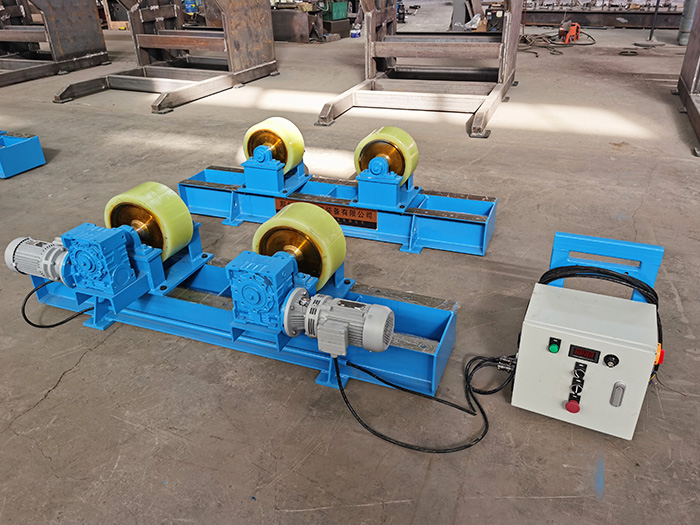

Adjustable Welding Rotator

The welding rotator is primarily used for welding, polishing, lining, and assembly of cylindrical workpieces. It can also be used in conjunction with other fixtures for the assembly and welding of conical and segmented workpieces with varying diameters.

Learn more

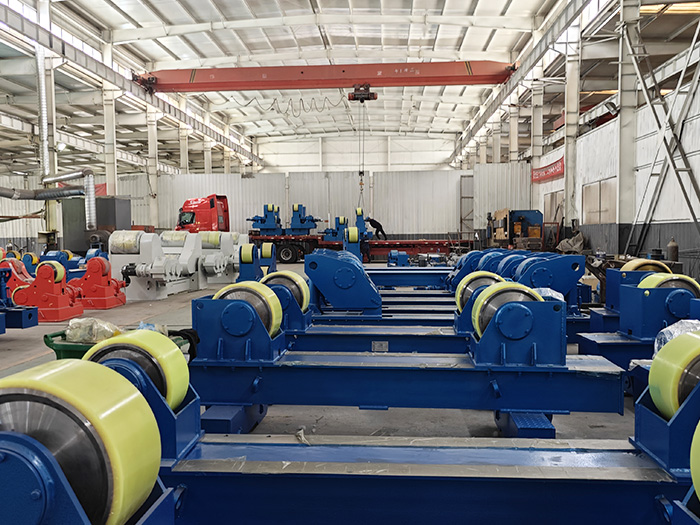

Electric Walking Welding Rotator

The electric walking welding rotator consists of an active frame and a passive frame. The active frame is equipped with two sets of AC motors and reduction gear drive mechanisms for the rollers.

Learn more

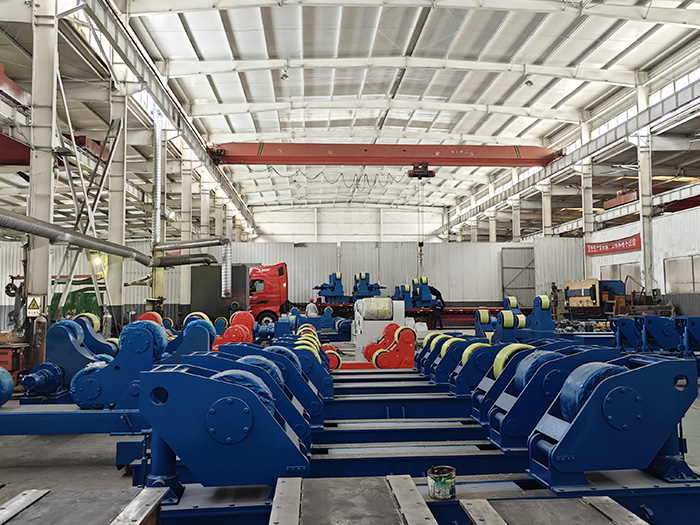

Hydraulic Assembly Welding Rotator

In comparison to the adjustable welding rotator, the hydraulic assembly welding rotator not only possesses the advantages of a welding rotator but also allows for center distance adjustment of the rollers to accommodate varying workpiece diameters.

Learn more

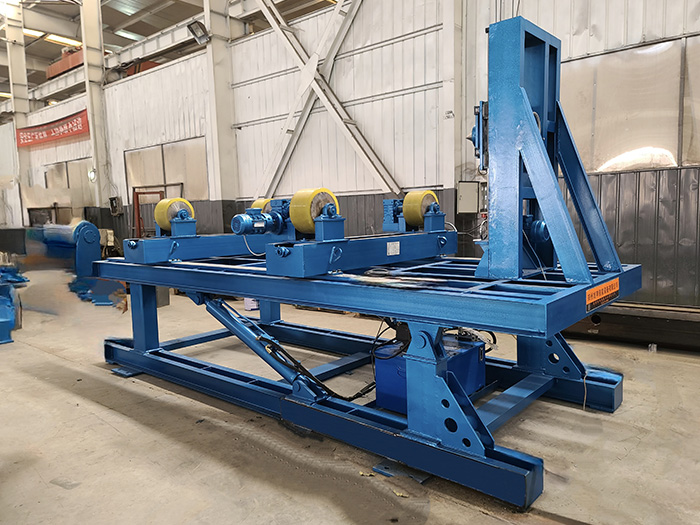

Hydraulic Tilting Welding Rotator

The hydraulic tilting welding rotator consists of an active roller frame, a passive roller frame, a hydraulic tilting platform, a pump station, anti-slip device, and an electrical control system.

Learn more

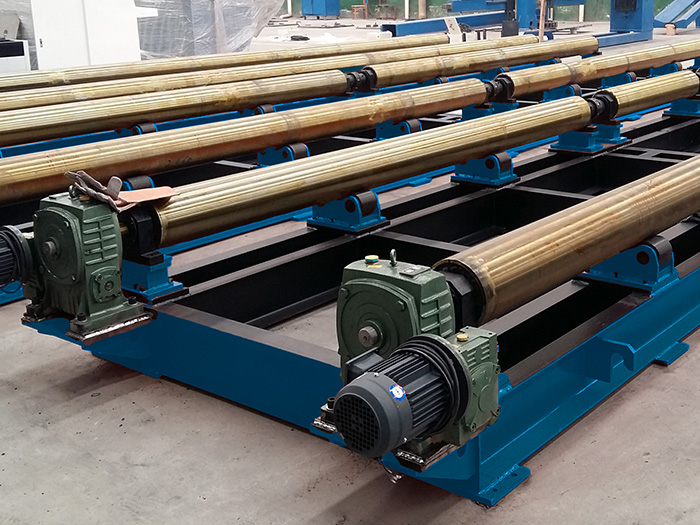

Long Axle Welding Rotator
