Welding Positioner for Precise Positioning and Rotation of Large Workpieces

In the fabrication of large and elongated structures, increasing workpiece dimensions place higher demands on positioning and rotation during welding operations. Conventional setups relying on fixed supports or manual adjustments often become inefficient when handling long components, as supporting distance is limited and repositioning requires repeated lifting operations. Maintaining a consistent welding posture throughout the process can therefore become challenging, affecting workflow continuity and operational efficiency.

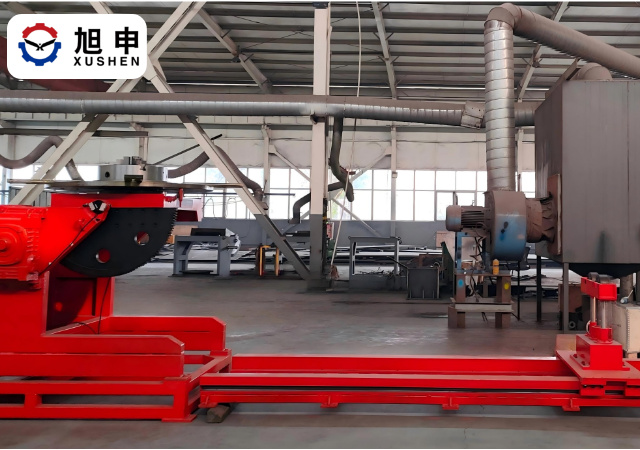

Designed for long-workpiece applications, this welding positioner adopts a rail-mounted configuration that combines movable support units with a rotating mechanism. The working position can be adjusted according to the length of the workpiece, allowing greater flexibility in production layout. Coordinated headstock and tailstock support ensures stable clamping while enabling smooth rotation and accurate orientation control. The rail-travel structure expands the operational range, allowing assembly and welding areas to adapt to production requirements while reducing manual intervention and unnecessary handling operations.

Focusing on the demands of large-workpiece welding, Xushen continues to refine equipment structures and control concepts to improve adaptability under complex working conditions. Moving forward, Xushen will further develop welding automation technologies to support reliable manufacturing processes.
