Hydraulic Clamping Welding Positioner for Large Workpieces

During the welding production of large cylinders, pipes and pressure vessels, traditional manual turning and supporting methods often face problems such as difficult operation, low welding efficiency and unstable weld quality due to the large size and heavy weight of the workpieces. Especially in the welding of long workpieces, how to ensure stable clamping, smooth operation and convenient welding has always been an important factor affecting production efficiency.

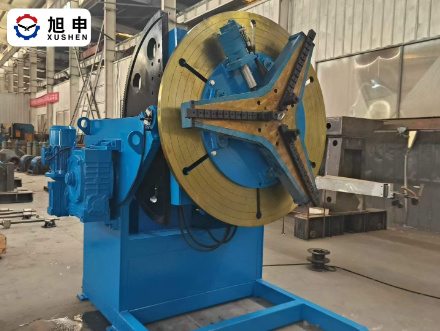

This equipment integrates workpiece clamping, rotation, tilting and auxiliary supporting functions into one system, effectively meeting the positioning requirements of large cylindrical workpieces during welding. The equipment adopts a hydraulic clamping structure, which enables fast and stable clamping for workpieces of different specifications while maintaining excellent stability and safety under heavy-duty working conditions. The roller support units can be manually moved according to the workpiece length, and the support positions can be adjusted through a screw mechanism, making the equipment suitable for workpieces with different lengths and diameters.

During operation, the workpiece can achieve smooth continuous rotation and tilting, keeping the weld seam in a more suitable welding position, which facilitates welding operation while reducing manual adjustment and lifting frequency, thereby lowering labor intensity. The stable load-bearing structure and reliable operating system effectively reduce workpiece vibration and improve welding stability and weld formation quality.

Compared with traditional welding methods, this equipment can effectively improve positioning efficiency and operational convenience during the welding of large workpieces, reduce manual intervention, and enhance continuous welding capability. For long cylinders, heavy pipes and similar workpieces, the equipment ensures stable load-bearing performance while achieving more efficient and reliable welding production, making it more suitable for modern automatic welding workshops with high requirements for efficiency and welding quality.
